RAM-GDS-CHARGE-V7B1U

Overview

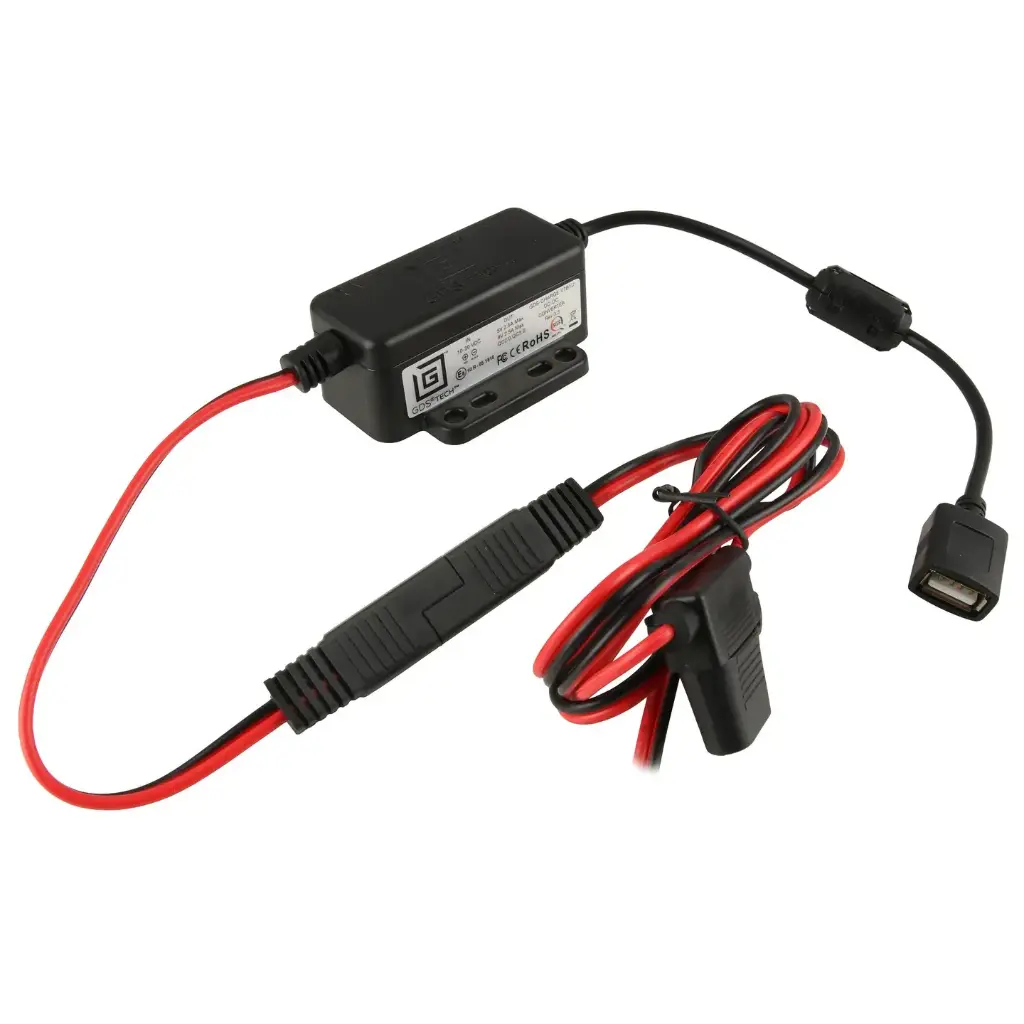

The GDS® Modular Hardwire Charger with Female USB Type-A Connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less. Always Protected. Always Connected.®

Features

• Hardwire charger includes USB Type-A female connector
• When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
• Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
• Backed by a 3-year warranty

Hardware Included:

(1) USB Type-C to Type-A 2.0 Cable

Input Voltage:

10-30VDC

Output Voltage:

5-9VDC*

Output Current:

2.5A max

Input Connector:

USB Type-C

Input Cable Length:

1.2 Meters including 2 Pole Flat Marine Connector

Output Cable Length:

.2 Meter

Operating Temperature:

-10°C to +70°C

Storage Temperature:

-40°C to +70°C

Regulatory:

Over Voltage Protection

Short Circuit Protection

Reverse Polarity Protection

RoHS Compliance

WEEE Compliance

SAE J-1113-5 Load Dump (Transient Voltage)

Moisture Resistant

FCC, CE, UKCA, IC

Certifications:

E-Mark Certification

RCM Certification

IEC/UL 62368-1

Warranty:

3 year warranty

Weight:

0.51 lb
