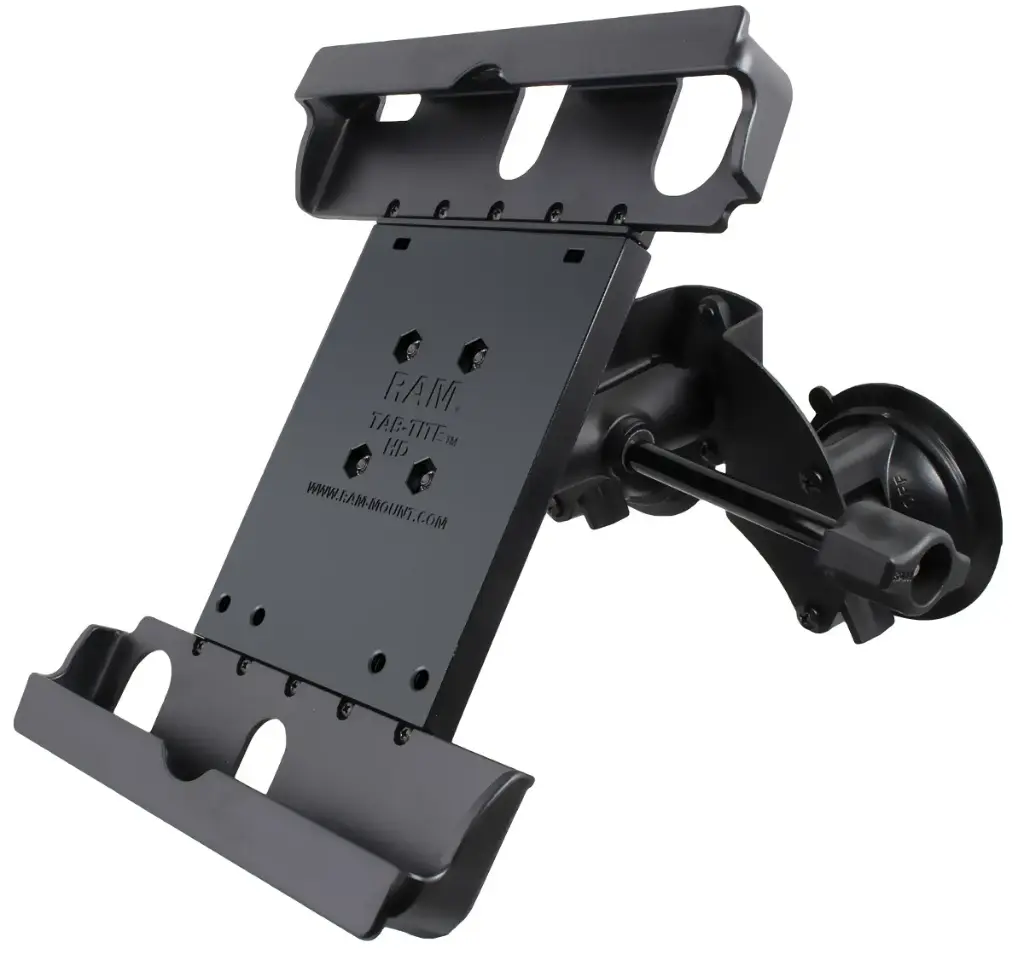

RAM-B-189-TAB20-ALA1-KRU

https://www.aerophoenix.com/web/image/product.template/1646/image_1920?unique=e96a57b

Overview

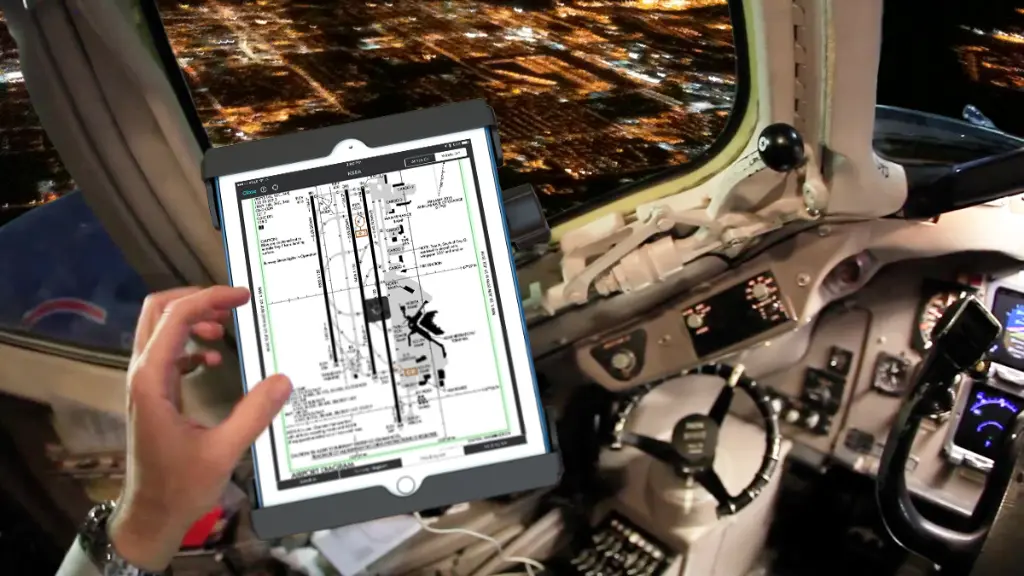

The portability and versatility of RAM suction cup mounts is second to none. With a hold so firm it's as if your tablet was hard mounted, this double suction cup system will be a must have for your tablet EFB solution. With a twist lock feature for easy installation and removal of the mount, this go anywhere product is the perfect tablet accessory for any pilot, both private and commercial. With a wide range of tablet cradles, you are sure to find the product that is right for your configuration. For safety, accessibility, and ease of adjustment for perfect viewing angles, you'll find nothing compares to the design of our patented double socket arm. Renowned for its simplicity and ease of use, this elegant design is just one of many features that sets RAM apart. RAM may not give you wings, but we'll certainly help you take flight. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Features

  • Spring-loaded holder secures 9" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Includes RAM® Twist-Lock™ dual suction cup base and medium length B size RAM® double socket arm with retention knob; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty*
Hardware Included:
Assembly Hardware

Holder Dimensions:
Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"

Suction Size:
(2) 3.3" Diameter Bases, Total Width 7.95"

Socket to Socket Length:
3"

Ball Size:
B Size (1")

Weight Capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Powder coated steel
Marine-grade aluminum
High strength composite

Weight:
2.18 lb

153.49 153.49 USD 153.49

Not Available For Sale

  • Brand
  • Case Quantity
  • 3rd Party Sales

This combination does not exist.

Brand: RAM MOUNTS
Case Quantity: 15
3rd Party Sales: No

Terms and Conditions
Shipping: Same Day on orders before 3PM
-Qualifying orders over $300.00 ship FREE (Continental U.S., standard shipping)
-Orders under $300.00 receive our discounted shipping rates.
-Drop Ship service is available for an additional $5.00 fee to cover time and materials.
