RAM-B-149Z-UN8U

Overview

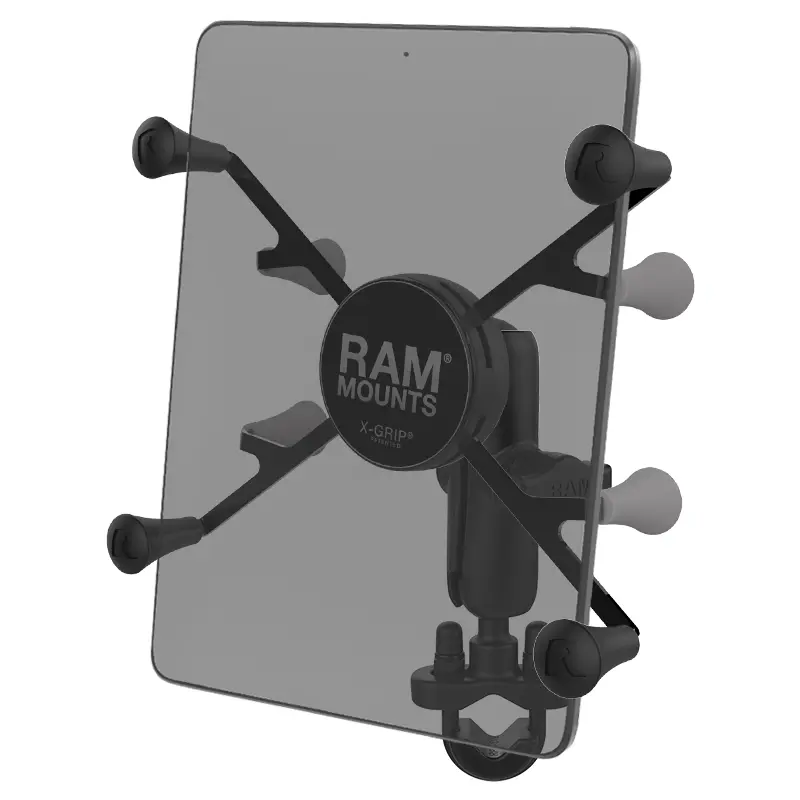

The RAM-B-149Z-UN8U consists of a zinc coated u-bolt base, double socket arm and universal X-Grip® clamping cradle for 7"-8" tablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Hardware Included:

(1) Optional Tether

(1) Glue Tube for Rubber Caps

(1) 1/4"-20 U-Bolt for .5" - 1" Rails

(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails

(2) 1/4"-20 Nylock Nuts

(2) Rubber Caps

(1) U-Bolt Spacer

Holder Dimensions:

Width Range: 2.5" - 5.75"

Depth Range: .875" max

Clamp Range:

.5" - 1.25" diameter

Socket to Socket Length:

3"

Ball Size:

B Size (1")

Weight Capacity:

Standard Use: 2 lbs

Heavy-Duty Use: 1 lb

Materials:

Marine-grade aluminum

High strength composite

Stainless steel

Weight:

0.8 lb
