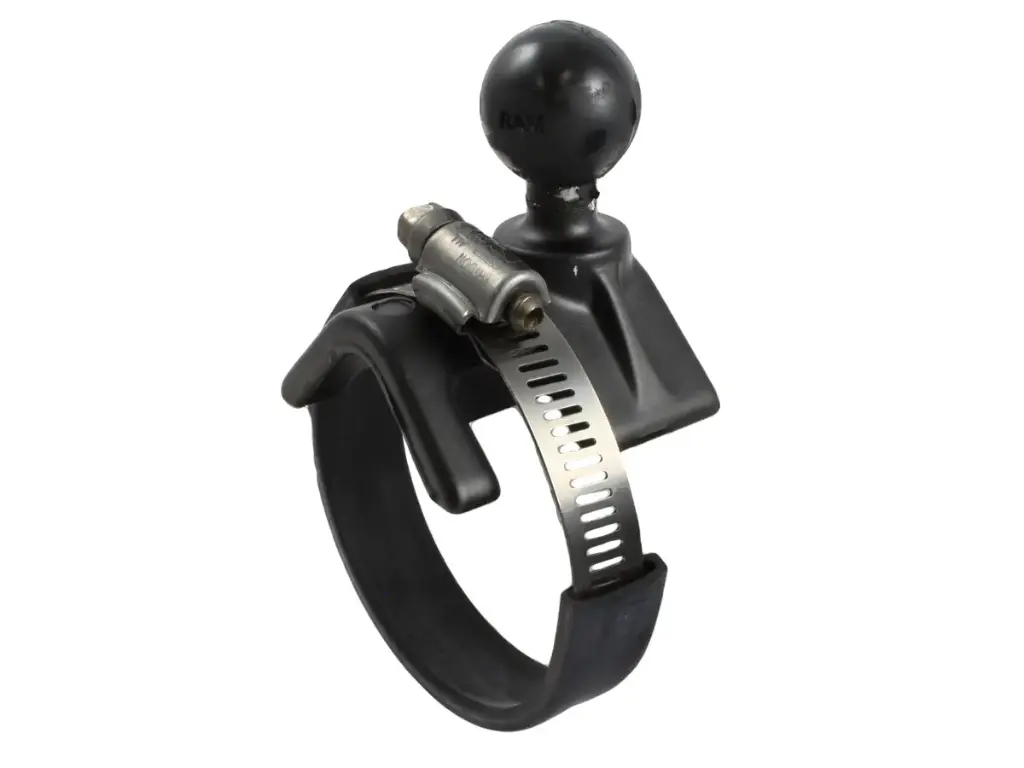

RAM-B-108B-STRAP40U
Overview

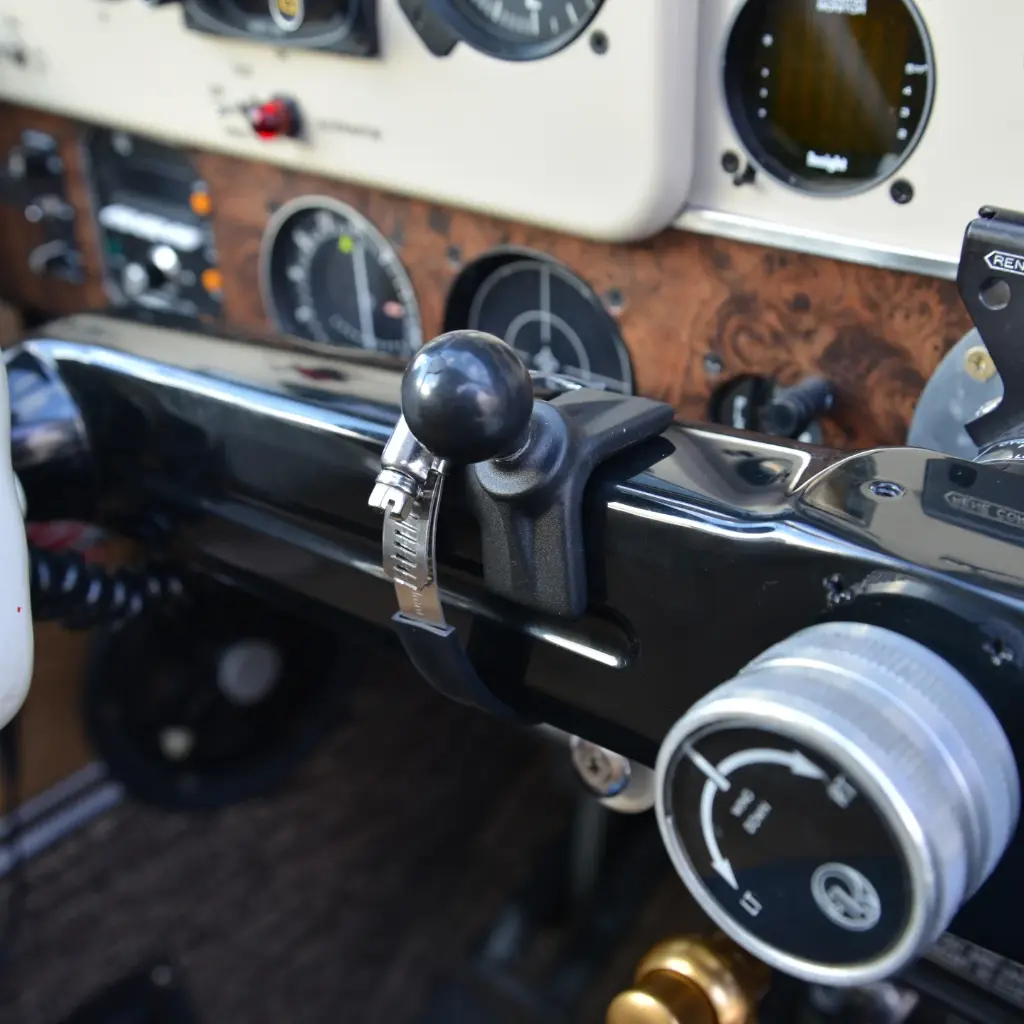

The RAM-B-108B-STRAP40U accommodates rails from 2" to a maximum of 3" in diameter. To mount the RAM-B-108B-STRAP40U base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The RAM-B-108B-STRAP40U is an alternative mounting base for aircraft such as the Bonanza or Beech with a “throw over yoke”.
Hardware Included:
(1) #40 Worm Drive Strap Clamp
(1) 6" Rubber Strip
Clamp Range:
2" - 3" diameter
Ball Size:
B Size (1")
Weight Capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
Weight:
0.26 lb
| Brand: RAM MOUNTS |
| 3rd Party Sales: No |
