RAM-111U
Overview

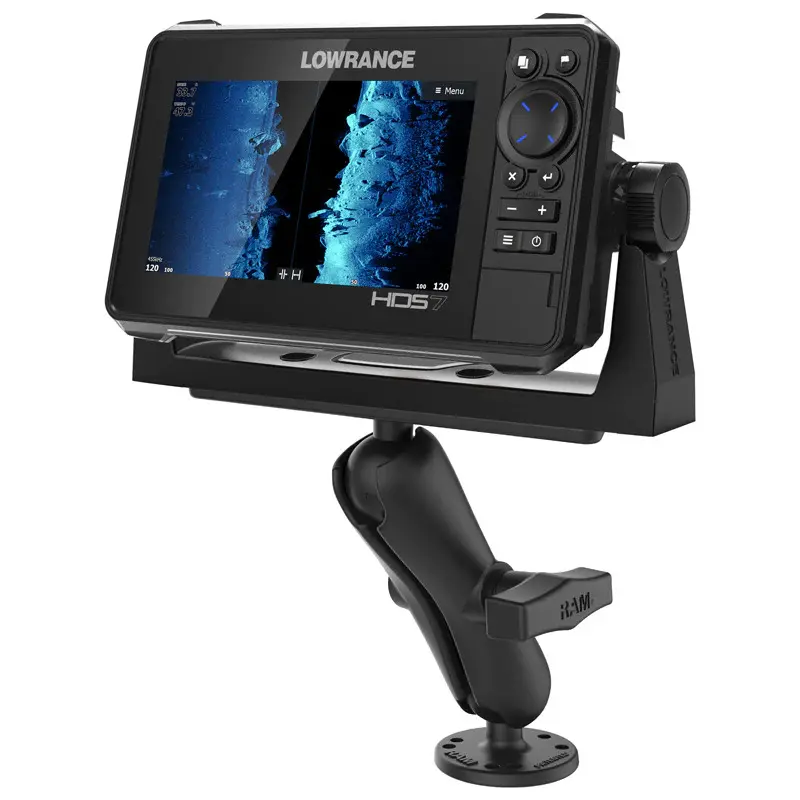

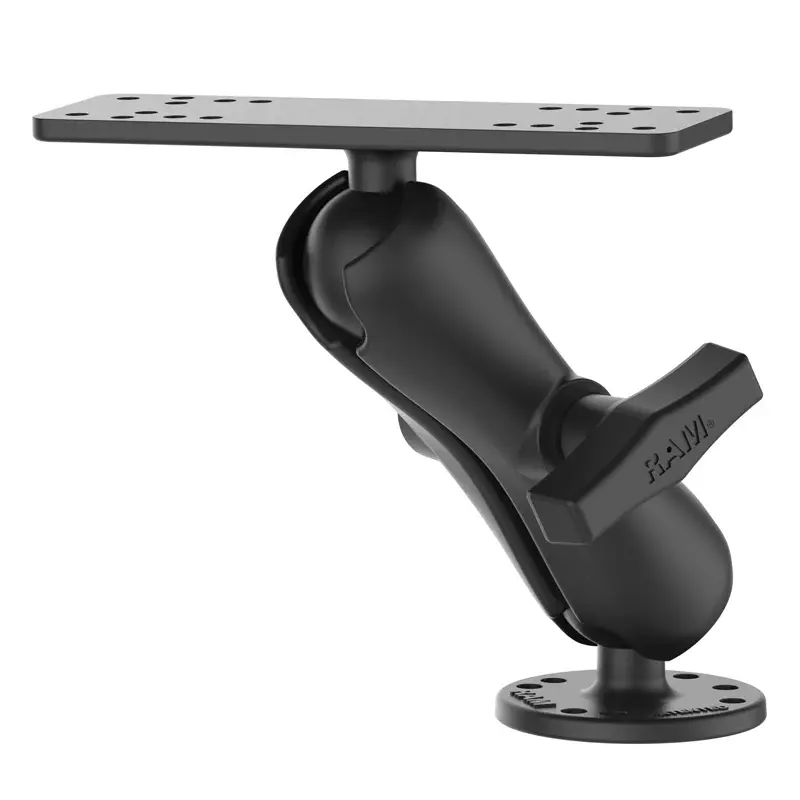

The RAM-111U consists of a medium double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fish finders and chart plotters.
Features
- Complete flat surface, drill-down mounting solution with an overall height of 7.35"

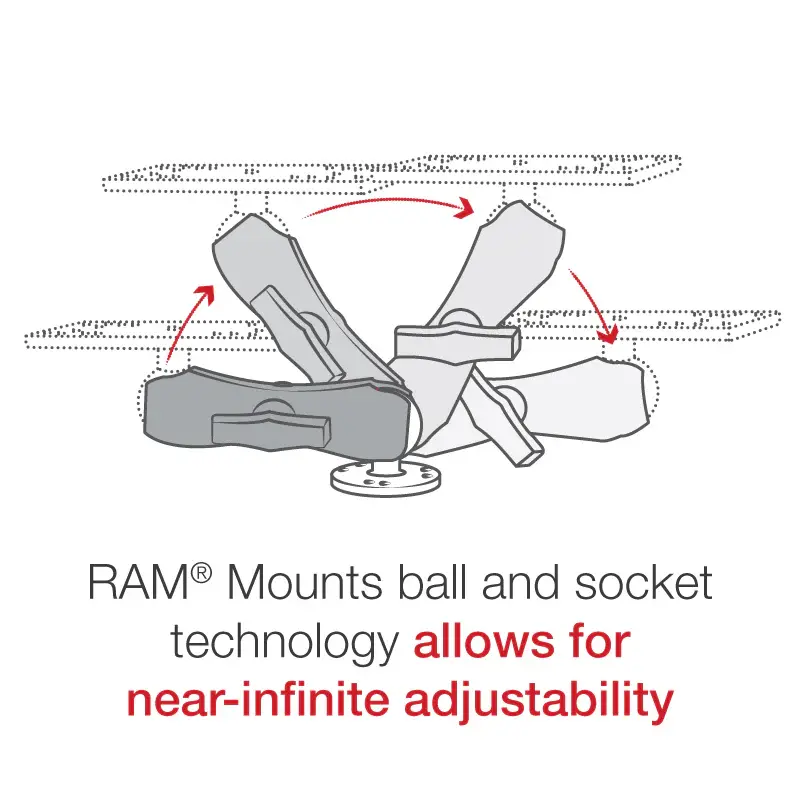

- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
Product Dimensions:
Overall Height: 7.35"
Socket to Socket Length:
4.66"
Hole Pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

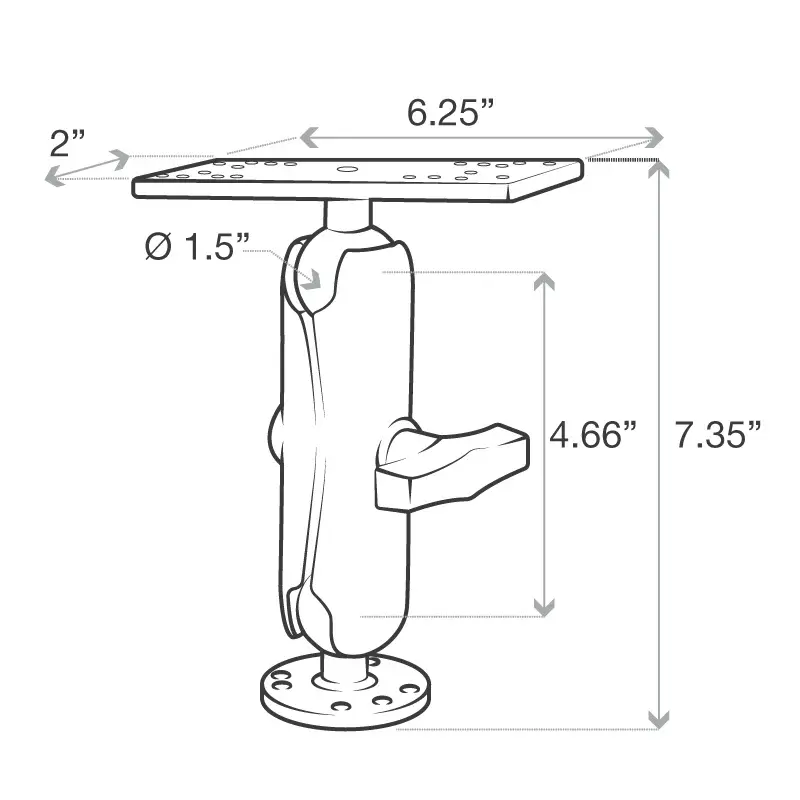

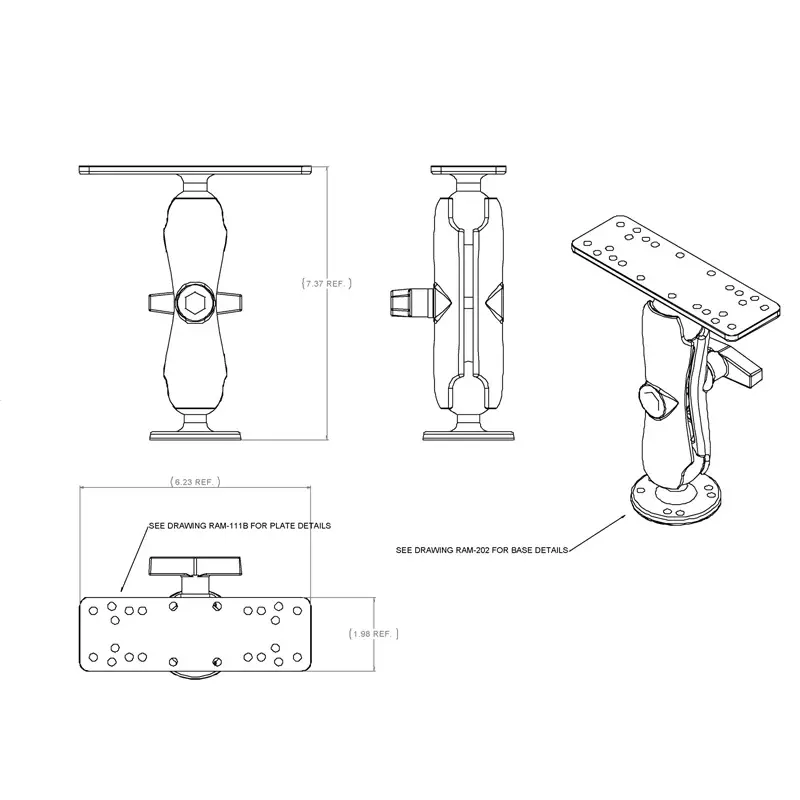

See Drawing
Plate Size:
Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter
Ball Size:
C Size (1.5")
Weight Capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
Materials:
Marine-grade aluminum
Weight:
1.34 lb
