OVERVIEW

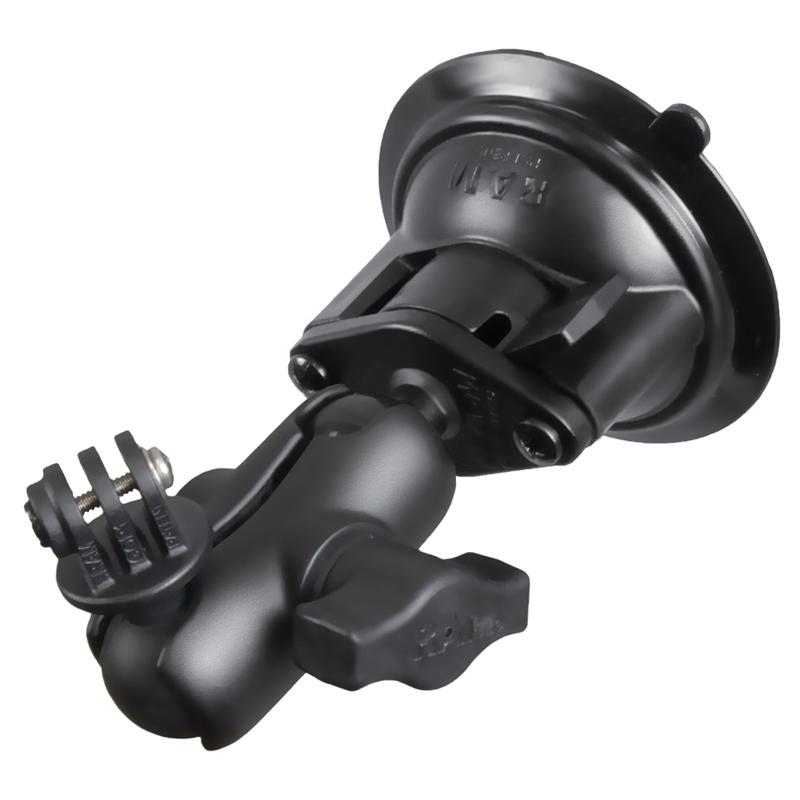

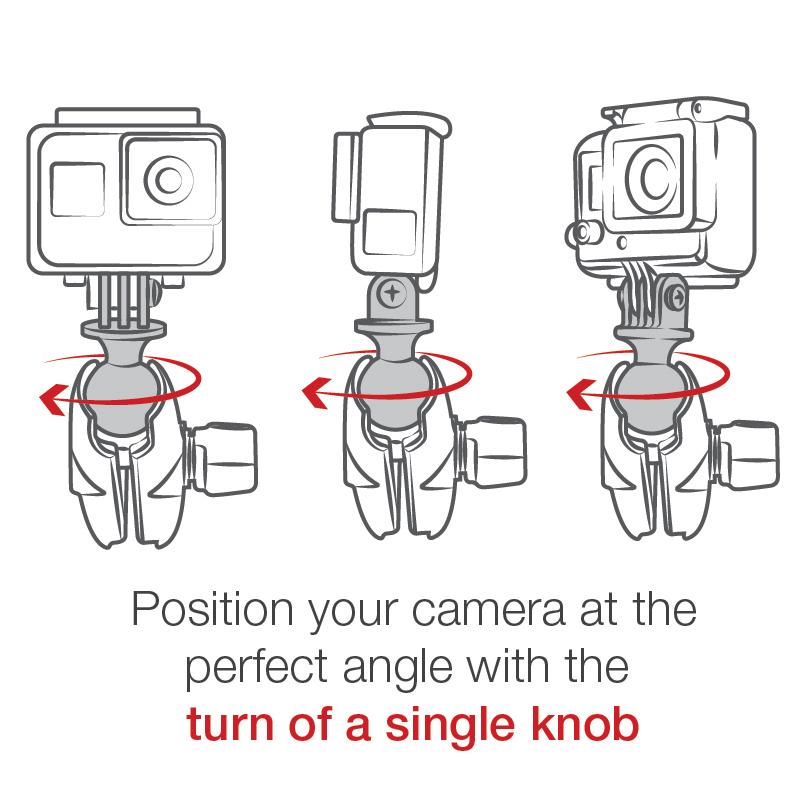

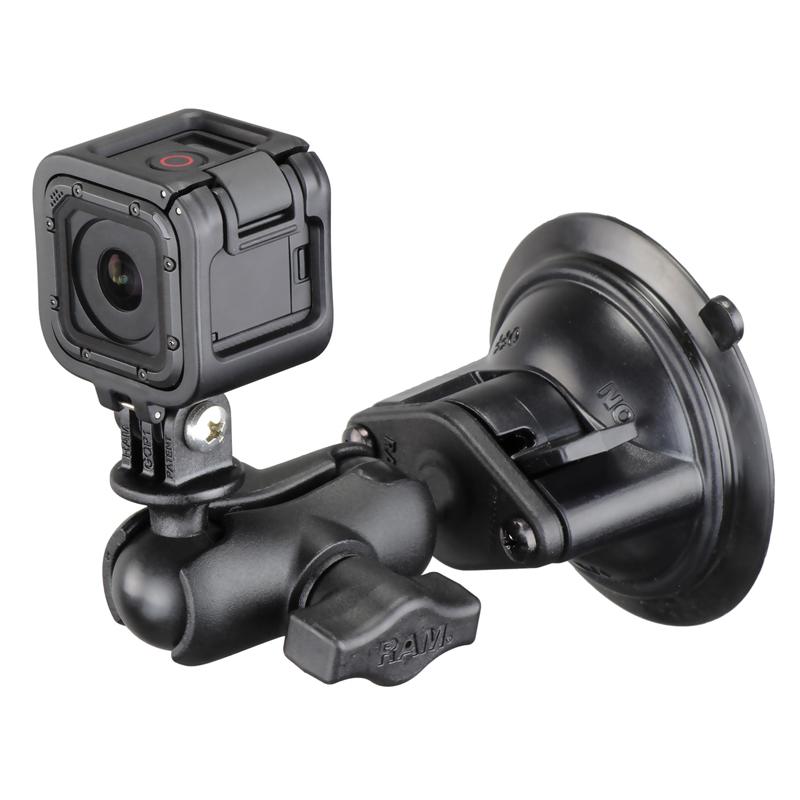

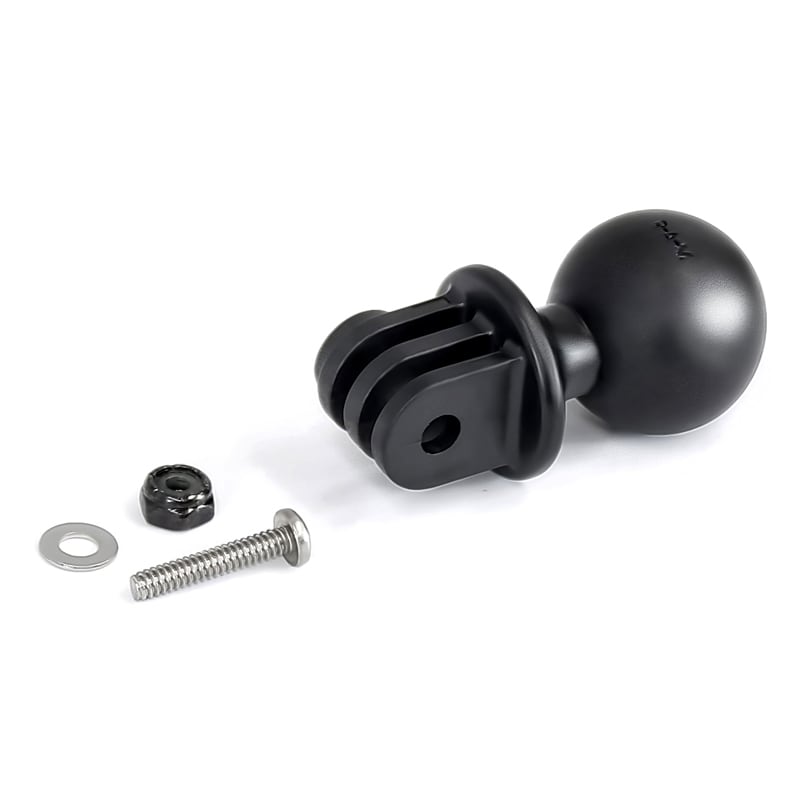

The RAM-B-166-A-GOP1U consists of a 3.3" diameter suction cup twist lock base, SHORT length double socket arm and 1" diameter ball with custom GoPro^® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including adhesive disks. The GoPro^® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.

HARDWARE INCLUDED

Assembly Hardware

SUCTION SIZE

3.3" Diameter

SOCKET TO SOCKET LENGTH

1.75"

PLATE SIZE

2.5" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.5 lb
