• RAM Tough-Charge with X-Grip Tech Waterproof Wireless Charging Holder

RAM Tough-Charge with X-Grip Tech Waterproof Wireless Charging Holder

Details

Details

FEATURES

  • Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 10W maximum output
  • RAM® Mounts Compatible with B size double socket arms and ball bases for mounting in your preferred location
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required


OVERVIEW

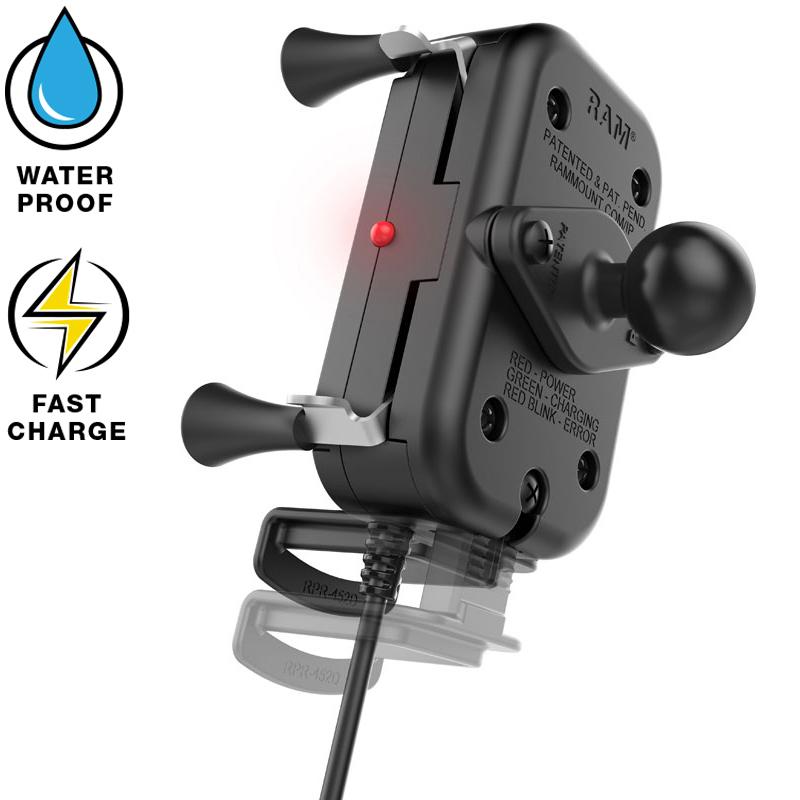

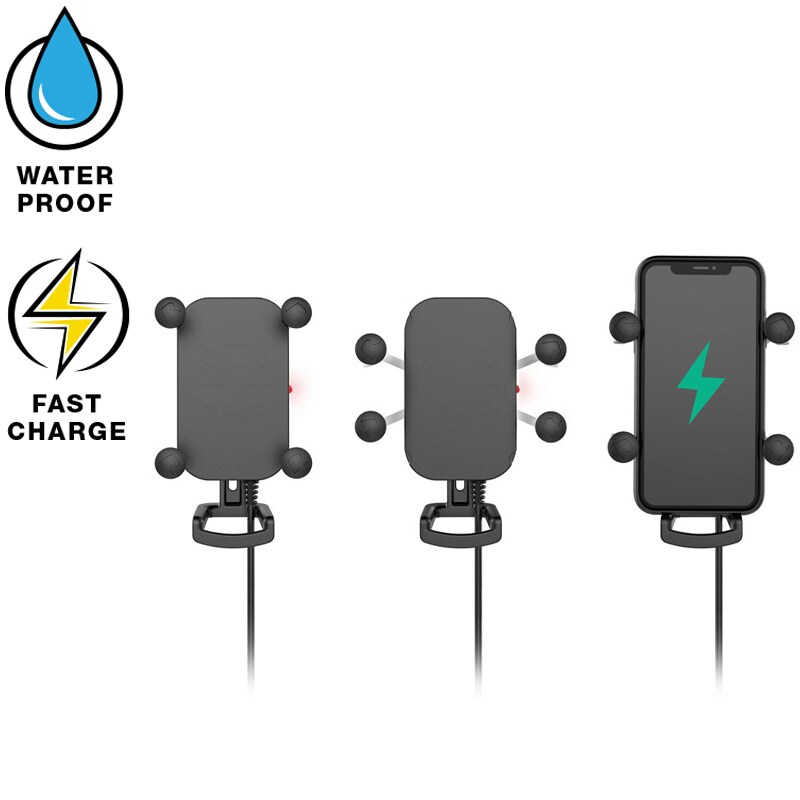

The RAM® Tough-Charge with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi compatible wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi compatible wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM® Tough-Charge with X-Grip® Technology wireless charging kit for vehicles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.


HARDWARE INCLUDED

(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover

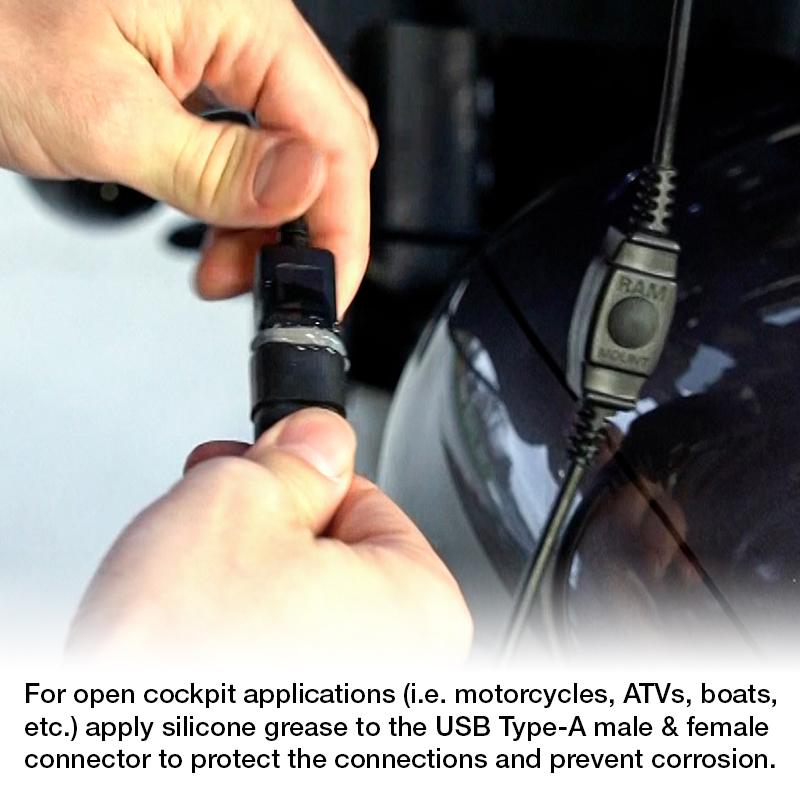

(1) Silicon sleeve for USB waterproof connection
(1) 1.2 Meter USB Extension Cable
(4) Small zip ties
(2) Large zip ties


HOLDER DIMENSIONS

Width Range: 2.375" - 3.25"
Depth Range: .875" max


BALL SIZE

B Size (1")


WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb


MATERIALS

High strength composite
Stainless steel


PACKAGING TYPE

Retail Box


POWER SPECIFICATIONS

Input Power:5V-2A; 9V-1.67A
Output: 5W / 7.5W / 10W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies


OPERATING TEMPERATURE

0°C to +37.7°C


CERTIFICATIONS

FCC, IC, KC, CE, e-Mark, WEEE, RCM, and RoHS Compliant


WARRANTY

1 year warranty


WEIGHT

1.2 lb


ADDITIONAL INFORMATION

This holder will not support iPhone 13 models. For iPhone 12 mini, case is required and use of included tether is required.

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.
