• RAM Ball Adapter with AMPS Plate

RAM Ball Adapter with AMPS Plate

Details

Details

FEATURES

  • 2" x 1.7" square ball base features industry-standard AMPS hole pattern with four pre-drilled holes at each corner
  • Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty


OVERVIEW

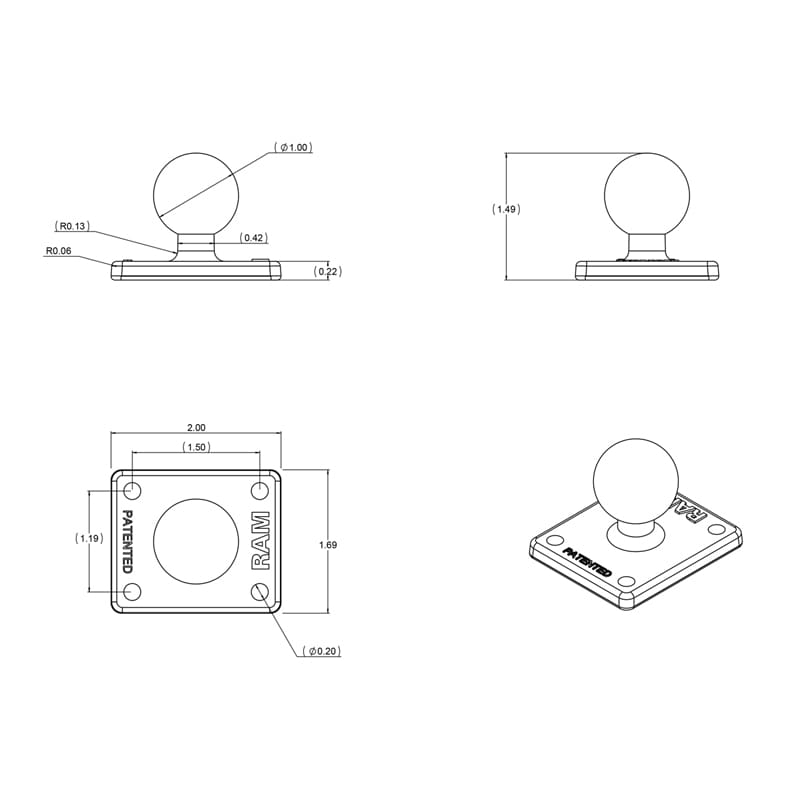

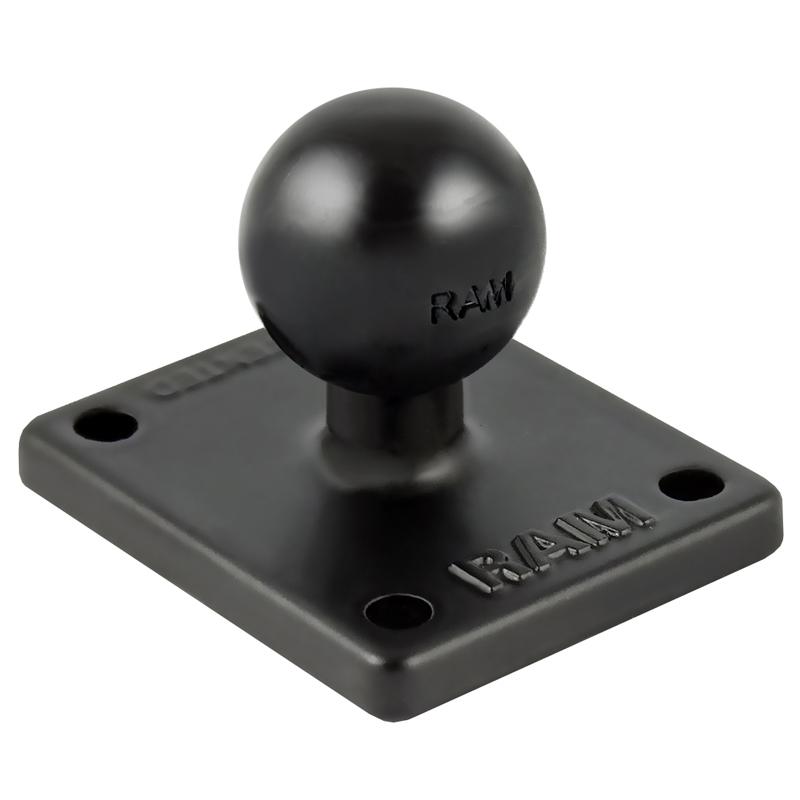

The RAM-B-347U base consists of a B size 1" diameter rubber ball connected to a 2" x 1.7" square base. The base has four pre-drilled holes at each corner, using the universal AMPS hole pattern.


HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"


THREAD PITCH

1/4"-20


PLATE SIZE

2" X 1.7"


BALL SIZE

B Size (1")


WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb


MATERIALS

Marine-grade aluminum


PACKAGING TYPE

Poly Bag


WEIGHT

0.15 lb
