RAM Lift Truck Overhead Guard Base
Details
Details
Overview
Sometimes the simplest solution makes the most sense. The new RAM Lift Truck Back-Up Mounting Plate is the ideal way to get a RAM ball attached to most any lift cage or overhead guard. Utilizing two identical plates of stamped steel with numerous common hole patterns and slots makes attachment a breeze. Three popular ball sizes: 1.5", 2.25 & 3.68" diameter may be attached to this plate system. Up to 2 balls may be attached to the same plate for multiple applications.
hardware included:
(4) 3/8"-16 x 4" Zinc Hex Bolts
(4) 3/8"-16 Zinc Hex Nuts
(4) 3/8" Zinc Lock Washers
(8) 3/8" Zinc Flat Washers
(4) 5/16"-18 x 1" Hex Bolts
(4) 5/16"-18 Zinc Hex Nuts
(4) 5/16" Zinc Lock Washers
(4) 5/16" Zinc Flat Washers
(4) #10-24 Machine Screws
(4) #10-24 Nylock Nuts

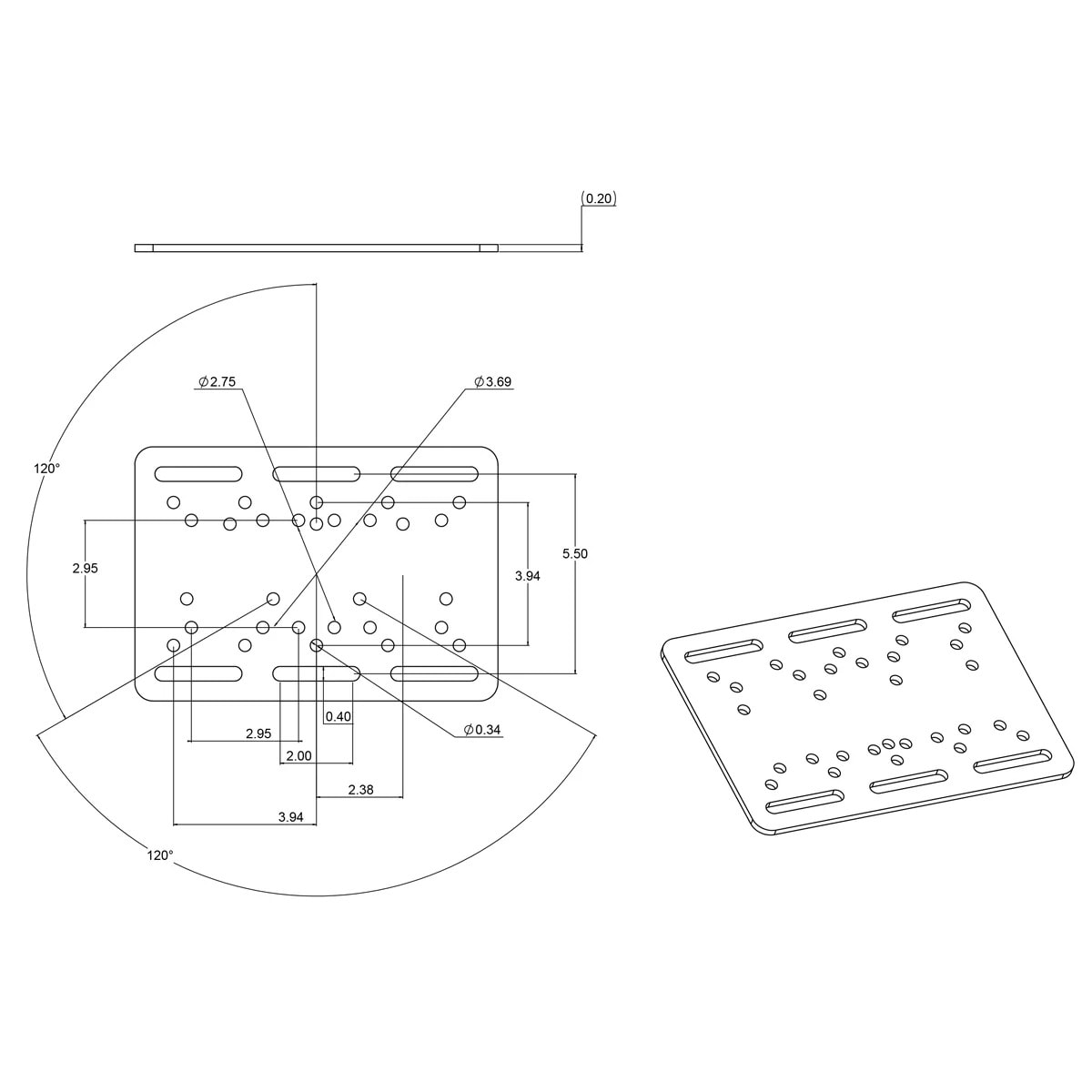

hole pattern:
See Drawing
materials:
Powder coated steel
packaging type:
Box
Weight:
8.05 lb
