• RAM Horizontal 6" Swing Arm Mount for Fishfinders & Plotters

RAM Horizontal 6" Swing Arm Mount for Fishfinders & Plotters

Details

Details

Features

  • Universal drill-down fishfinder mounting solution features 6" swing arm for ideal device placement
  • Two pivot points allow for complete 360-degree rotation
  • Made of powder-coated steel and high-strength composite
  • Backed by a lifetime warranty

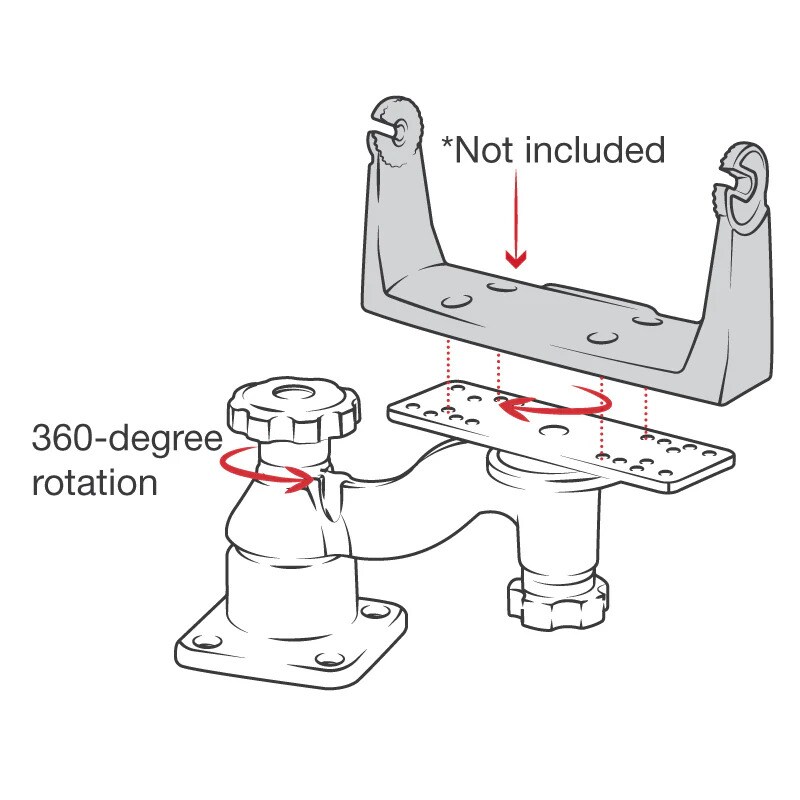

The RAM-109HU consists of a 6" long bent swing arm mounted on a horizontal surface base. At the device mounting end is a rectangular 6.25" x 2" plate. There are two pivoting points on the mount: one at the base of the swing arm and one at the center of the rectangular plate. Each pivoting point allows a complete 360-degree rotation.

product dimensions

Overall Height: 5.41"
Total Swing Arm Length: 6"

hole pattern

Top Plate: See Drawing
Bottom Plate: 2.5" x 2.5"

plate size

Top Plate: 6.25" x 2"
Bottom Plate: 3.47" x 3.47"

weight capacity

8 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

2.21 lb
